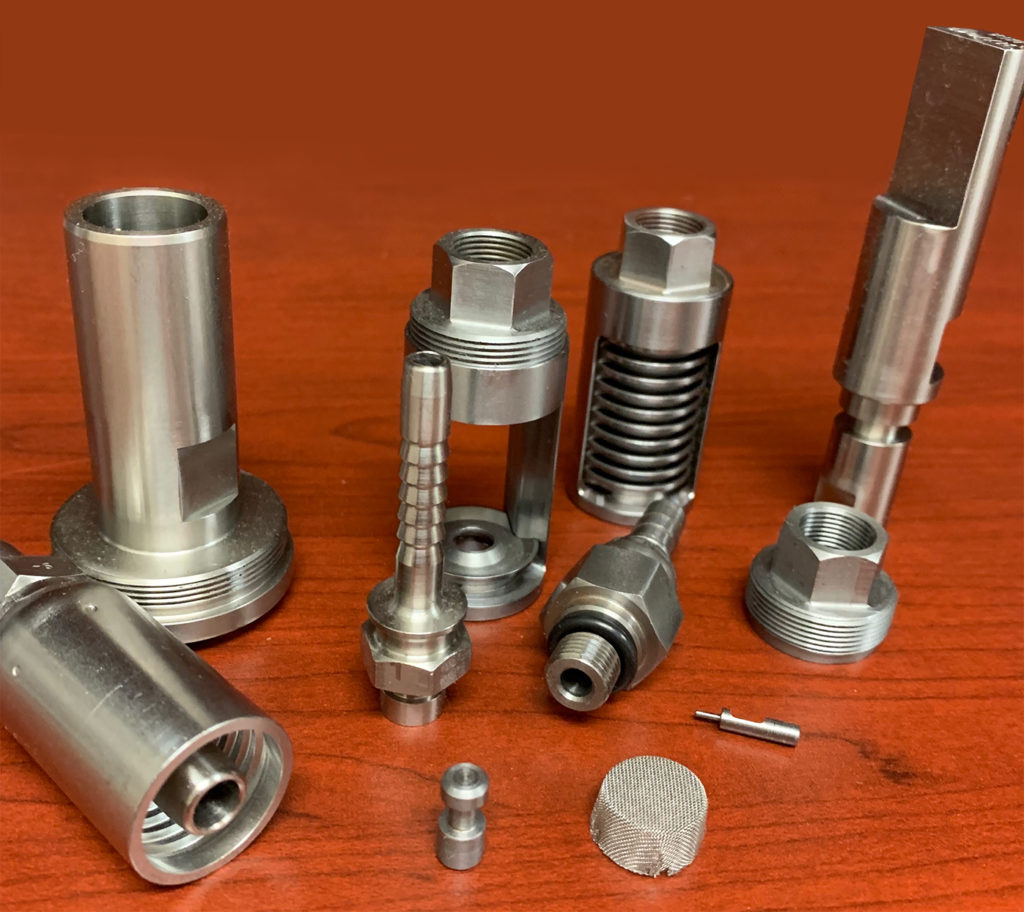

Precision CNC Machining

Kilgore Manufacturing Company, Inc. performs top-notch, precision CNC machining services, meeting tolerances as low as +/- .0005 of an inch. We pride ourselves on offering lean manufacturing operations and lights-out machining capabilities that ensure clients receive high-quality products in short, 3 to 6 week lead times. Expedited services are also available upon request.

Our machinery is well-equipped with automatic bar loaders and live tooling capability to allow maximum output in the manufacturing of our products. It is also crucial to the machining process that we can utilize Y-axis movement as well as C-axis orientation with our CNC equipment. With capacities of up to 2 9/16” round in our automatic bar loaders, Kilgore Manufacturing welcomes the wide array of demands the industry possesses.

By offering our clients a comprehensive array of precision CNC machining service options, along with a full selection of value-added services, Kilgore has become a one-stop shop for quality CNC machined products, fulfilling the needs of diverse industries. For fast, reliable service, contact Kilgore today for all your CNC machining job requirements.



Precision CNC Machining Capabilities

Machining Capabilities

Swiss Turning
CNC Milling
CNC Drilling
CNC Turning
Conventional Milling
Conventional Drilling
Conventional Turning

Cylindrical Grinding
EDM
Sub Assembly
Design Work Up
Fabrication
Reverse Engineering

Machining Processes

Broaching
Parting/Cutting
Facing
Contour Turning
Form Turning
Taper Turning
Straight Turning
External Threading
Internal Threading
Internal Forming
Knurling
Boring

Broaching
Drilling
Counterboring
Countersinking
Pocketing
Profiling
Reaming
Tapping
Thread Milling
Gear Hobbing
Palletizing

Bar Capacity (Rd.)

3.125 in

Maximum Turning Diameter

15 in

Maximum Turning Length

28.25 in

Maximum Milling Longitudinal Travel

41.313 in

Maximum Milling Cross Table Travel

22 in

Maximum Milling Vertical Travel

20 in

Tolerances (+/-)

.0005 in

Maximum Part Weight

Die Carts
Electric Hoist

Machinery Axis

9 Axis Swiss Lathes
4 and 5 axes Mills
6 and 7 axes Lathes
Live Tooling on Lathes, End & Cross Work

Materials (Metals)

Brass
Aluminum
Mild Steel
Stainless

Forgings
Ductile Iron
Copper
Bronze Alloys

Materials (Plastic Polymers)

Brass
Aluminum
Mild Steel
Stainless

Forgings
Ductile Iron
Copper
Bronze Alloys

Materials (Plastic Polymers)

ABS
Delrin
Acetal
Acrylic

Nylon
Teflon
Polyetheretherketone (PEEK)
Glass Filled

Fixturing

4th Axis Indexers
Main Spindles
Sub Spindles
Live Tools
Cross Drilling
Cross Taping

Fixture Plates
Two-Jaw Chuck
Three-Jaw Chuck
Four-Jaw Chuck
Pallets
In-House Fixturing & Tooling

Equipment Capabilities

CNC Control
Bar Feed

Thru Spindle Coolant
High Pressure Coolant thru the Tool

Value Added Services

Fulfillment
Assembly
Kit Building
Crimping
Bending

Polishing
Welding
Brazing
Inspection
Packaging

Quality

Coordinate Measuring Machine (CMM)
Comparator
Calibration Gauges

Pressure Tests
Leak Testing

Production Volume

Prototype
Short Volume

Second Operations
Mid\High Volume

Typical Lead Times

3 to 6 weeks
Expedited Services Available

Intended Applications

Mining
Agricultural
Truck
Automotive
Heavy Equipment
Orthopedic

Medical
Electrical
Military
Appliance
General Industrial

Industry Standards

ISO 9001:2008 Certified
Mil-Spec
SAE Standard

DOT
FDA

Efficiency

Lights Out Manufacturing
Lean Manufacturing

File Formats

Part Maker
AutoCAD (DWG,DWZ)
BMP
Bit Mapped Graphics
DXF
Drawing Interchange Format, or Drawing Exchange Format
GIF
Graphics Interchange Format
IGES
Initial Graphics Exchange Specification, ANSI file format.
JPG or JEPG
Joint Photographic Experts Group
MasterCam (MDX, MC8, MC9, SET)
PDF
Portable Document Format
STEP
Standard for the Exchange of Product Model Data
TIFF
Tagged Image File Format
